Overview

• Cutting and clamping mechanisms are closed for operator safety
• Servo drive provides precise cutting lengths

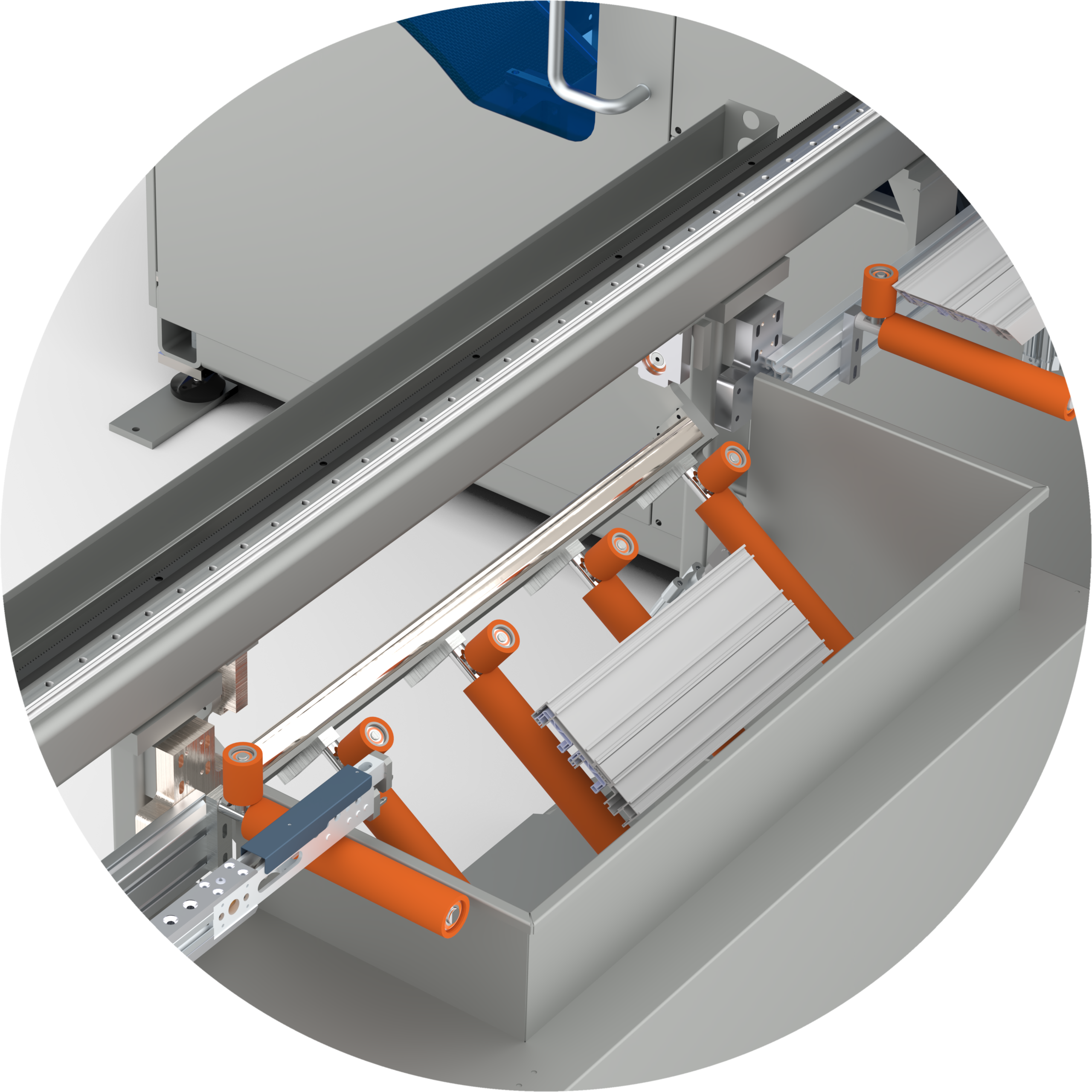

• Cut workpieces are automatically transported to the discharge station
• Remaining waste profiles can be left at the waste discharge station in the loading station

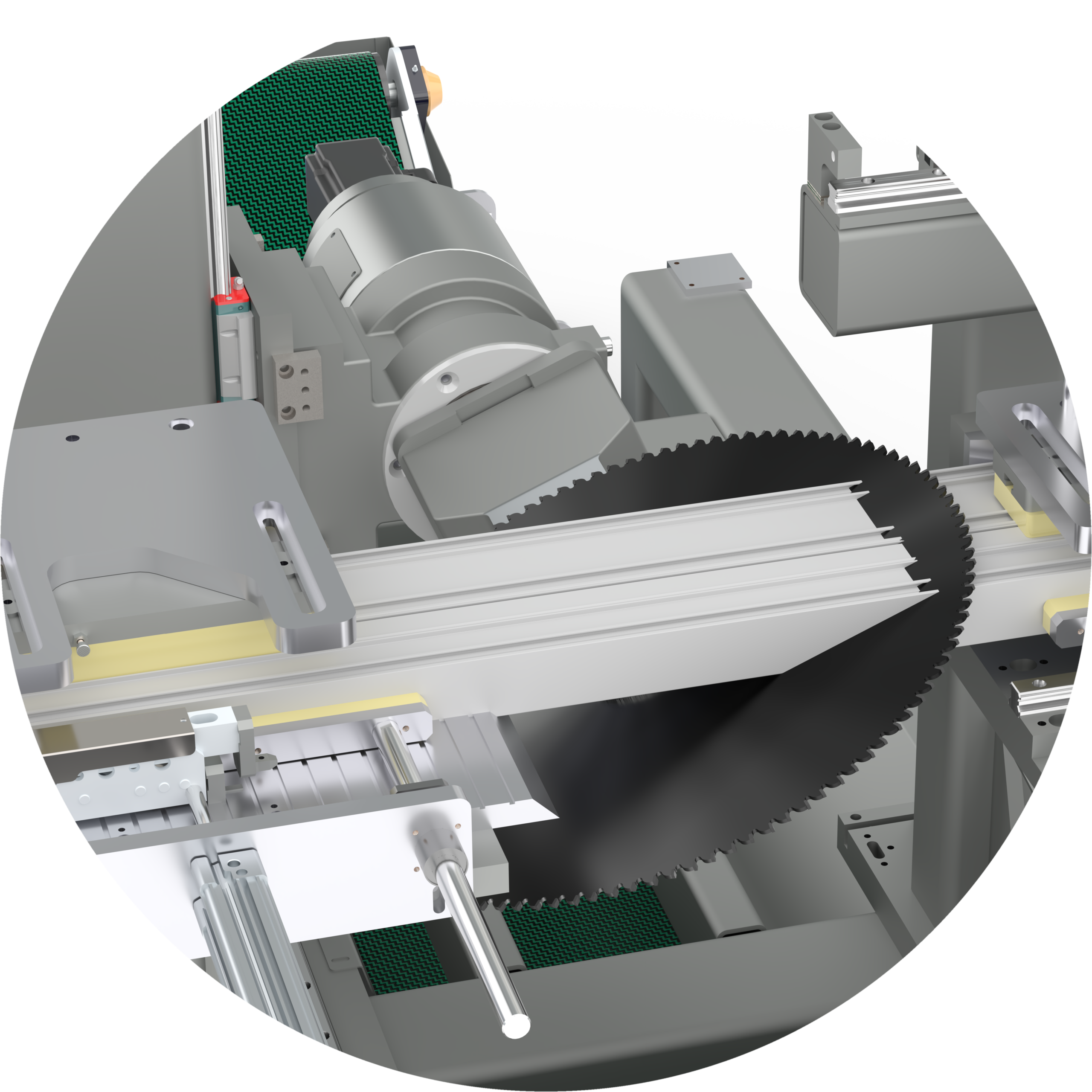

• 3-ais saw automatically cuts all angles between 22.5° – 157.5° in 0,1° sensitivity via servo motors.
• Material pusher holder can be adjusted horizontally (Y axis) and vertically (Z axis) to adapt to different profile shapes
• Feed speed can be adjusted for 3-axis saw
• Remote network connection and troubleshooting service with connection to the entire automated system
• Support service can be provided with remote connection method and troubleshooting to entire automation system
• 15” touch screen
• High performance industrial PC, working between 0ºC – 55ºC without a fan
• Able to transfer waste parts to a waste container with automatic conveyor belt system
• Full integration with window-door production software programs
• All error messages can be monitored on screen by Haffner software engineering
• Central Lubrication system for easy machine maintenance
• Dust and chip extraction system
• User and Maintenance manual
• Machine installation and training included (excluding technician transport)
