Specs & Sizing

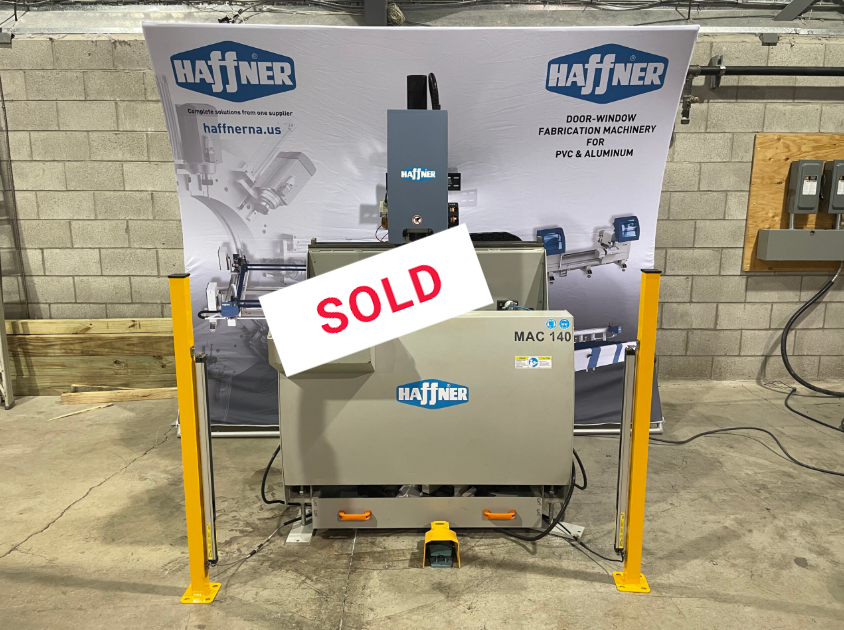

Model number: MAC-140
Description PC controlled, 3 Axis interpolated CNC machine. Able to move on 3 axis simultaneously on the work piece. (Axis interpolarization) Ability to work with high accuracy on aluminum & PVC door, window and facade profiles (+/- 0,1mm). Ability to fix the profiles rigidly with 3 piece clamp. Central lubrication system to ease the machine maintenance.
Estimated Hours Used None (less than 10 hours) Previous customer had it as a failsafe in case their main machine went down.
Notes Excellent condition, missing the extensions on the sides of the machine. Extensions can be ordered
Electrical Rating: 400 V, 3 ph, 50-60 Hz Total Power: 8 kW, 32 A
Spindle Motor: 5.5 kW,18,000 rpm Air Consumption: 80 l/min.
Min. Profile Height: 30 mm Max. Profile Height: 140 mm
Max. Profile Width: 150 mm Machine Height: 1,940 mm
Machine Length: 1,380 +5,760 mm (Conveyor length) Machine Width: 1,400 mm
Machine Weight: 650 kg
