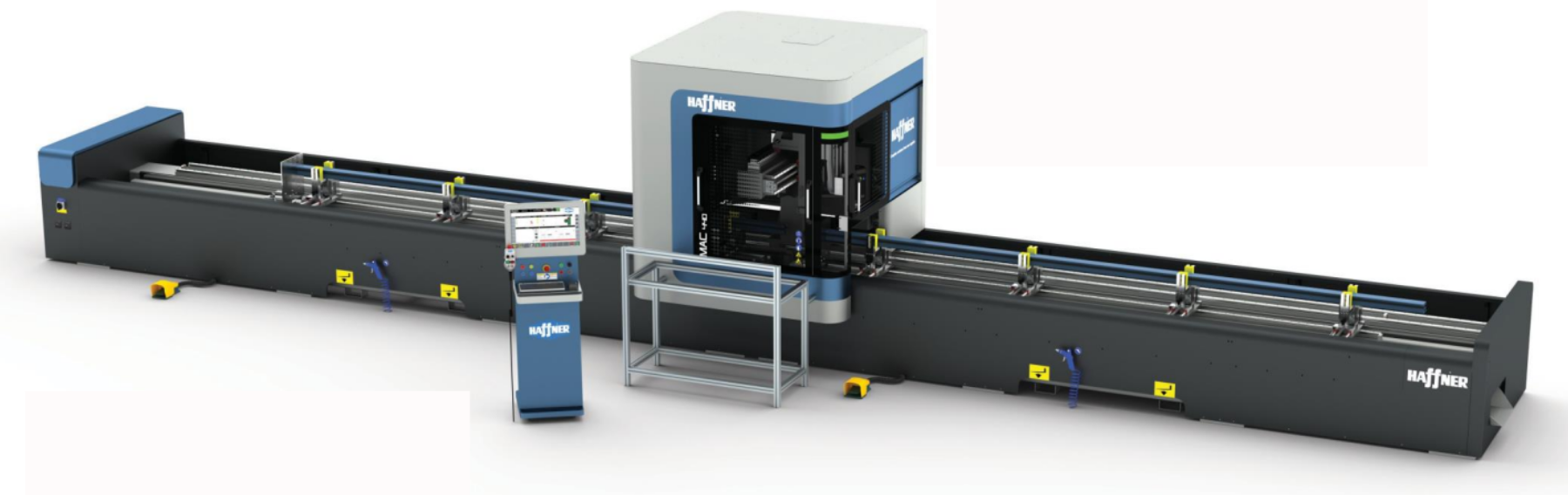

MAC – 441 4 AXIS PROFILE MACHINING CENTRE
MAC- 441
MAC-441 Machining Center is designed to perform standard operations on profiles such as milling, drilling, notching and marking, flowdrill and tapping, with computer control. The operations performed on more than one cutting machine are collected in a single machine, ensuring production speed and quality standardization, while labor resources are optimized.
Overview
- Mac 441 Aluminum Profile Machining Center is designed for milling, drilling, cutting and tapping of aluminium profiles in 4-Axis.
- 4 axis system controlled by high precision servo motors.
- 4100-8500 mm (161.42-334.65 in.) processing length.

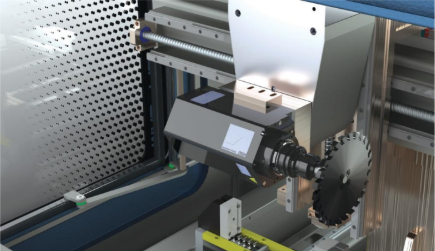

- Water cooled electric spindle 7 kW (9.39 Hp), 24000 rpm (400 Hz), with HSK F63 tool connection suitable for materials removal process during milling and drilling operations.
- Automatic clamp recognition and clamp positioning

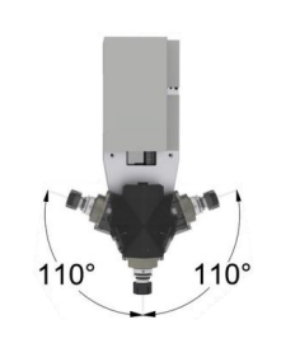

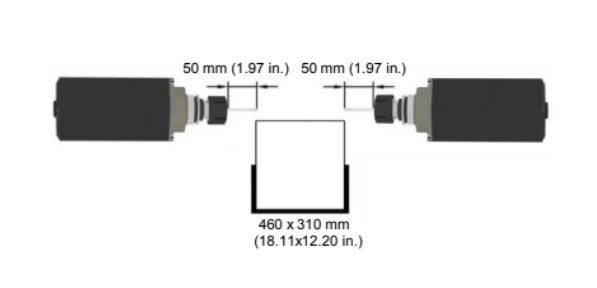

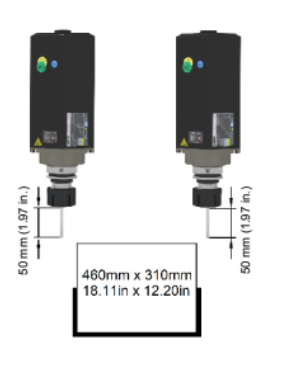

- A axis work between angles -110°-+110°.
- Windows operating system
- 21” LED display screen
- Hand held operator terminal with start/stop switch and speed control
- Thread cutting, flow drill and countersink operations.
- Easy to perform operations on the profile with the CAD/CAM program.
- Network connection for remote technical support
- Chip collection trays
- Protective safety cover around machining spindle
- Filter-Regulator-Lubricator for incoming air supply
- Central lubrication system that facilitates the machine maintenance.
- Operating and maintenance manual
- Machine installation and training
Available Options
- Water cooled 11 kW (14.75 Hp), routing spindle.
- Barcode reader. (AK 002)
Specs & Sizing
MAC-441
X-Axis traverse path:
4,600 mm (181.10 in.) Vmax. = 120 m/min. (393.70 ft./min.)
Y-Axis traverse path:
930 mm (36.61 in.) Vmax. = 60 m/min. (196.85 ft./min.)
Z-Axis traverse path:
625 mm (24.60 in.) Vmax. = 60 m/min. (196.85 ft./min.)
Maximum machinable length:
4,100 mm (161.41 in.)
8,500 mm (334.64 in.)
Tool magazine:
10+1 (Disk Mill Cutter) pcs
Maximum milling blade diameter:
150 mm (5.90 in.)
Number of standard pneumatic clamps:
4+4 pcs.
Clamp positioning:
Automatic Movement by Machine Head
Vices positioning:
Automatic
Power supply:
400 V, 3~50-60 Hz
Spindle motor power:
Power: 7 kW (9.39 Hp)
Total Power Output:
15 kW (20.11 Hp), 32 A
Tool Magazine:
10+1 (Disk Mill Cutter) pcs
Working air pressure:
7 bar (100 psi)
Tool holder:
HSK F63
Machine height:
2,300 mm (90.55 in.)

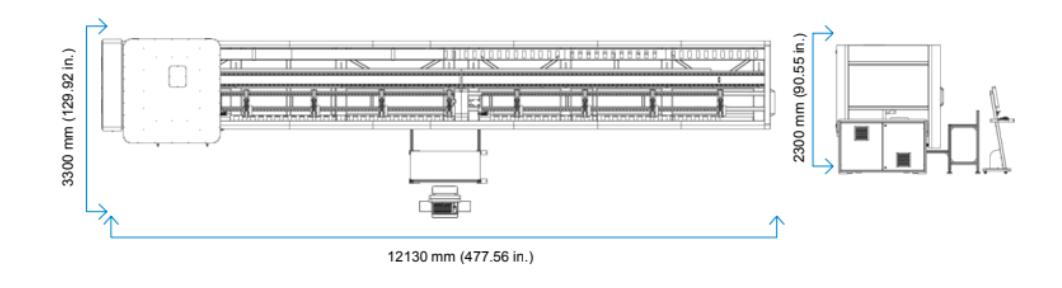

Machine length:
12,130 mm (477 in.)
Machine width:
3300 mm (130 in.)
