TA- 421 Automatic Single Mitre Saw

Overview
Specs & Sizing
Gallery

TA- 421

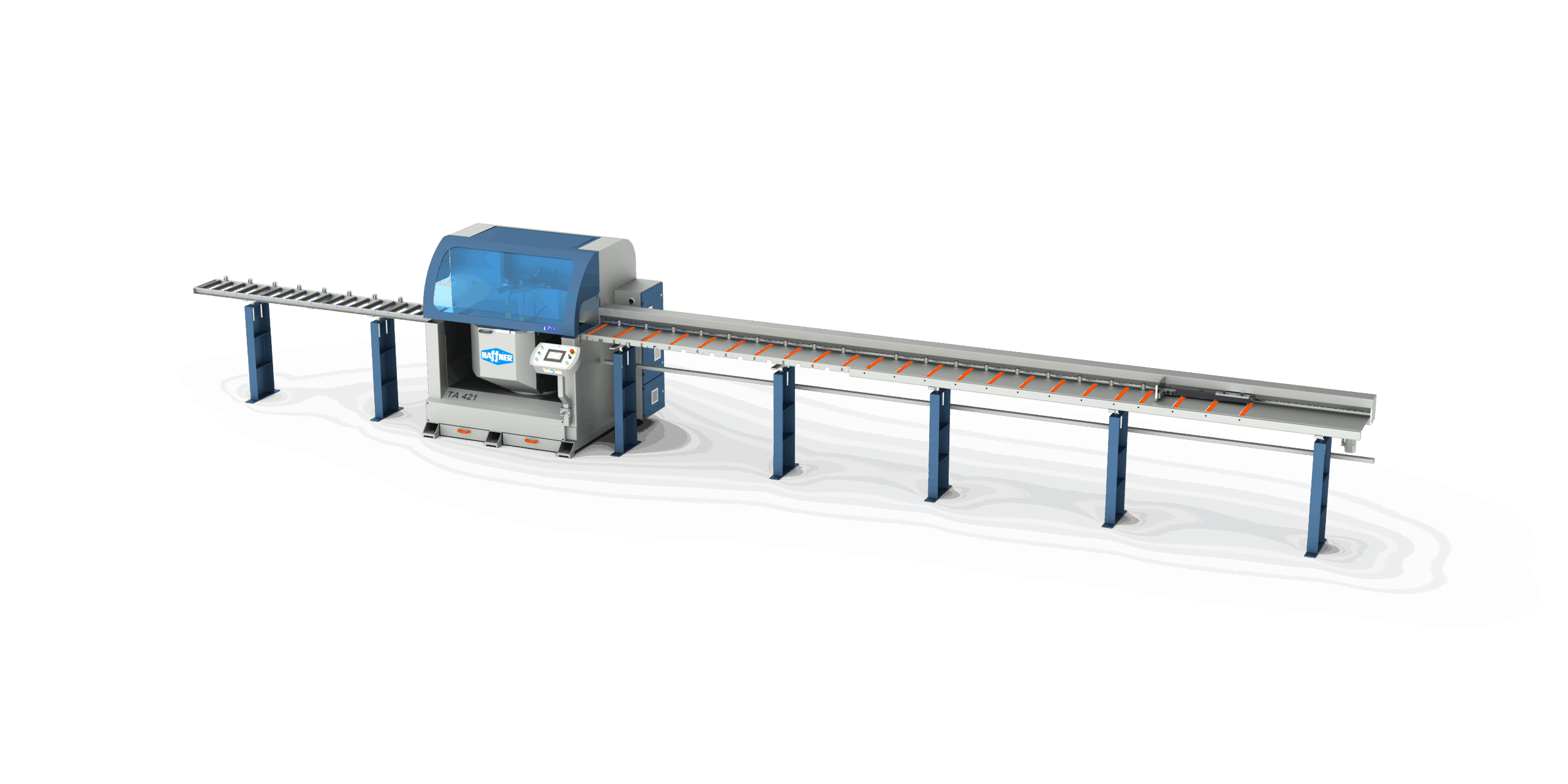

TA-421 Automatic Single Miter Saw can easily cuts Aluminum profiles with a 650 mm diameter and working with the “oncoming” principle. It has a strong construction specially designed for cutting quality, length and angle precision.

Overview

  • Solid cast construction for length and angle accuracy.
  • Length and cutting accuracy due to strong construction and linear bearing system
  • Position accuracy possible with angle deviations is less than 0.1°.
  • Pivot and tilt angle in control panel
  • 650 mm (19.69 in.) diameter saw blade enables accurate cutting of different profile sizes.
  • Profile lifting bars
  • Automatic closing safety hood to protect the employee
  • 2 vertical and 1 horizontal clamping system to ensure optimum profile fixing
  • Data transfer by means of network connection or USB
  • Item number, length dimensions, angles and quantities can be programmed on the control panel. (2000×10: Able to cut in different program.
  • The tilt and pivoting rotation movements of the saw are made by servo controller
  • Operating and Maintenance manual.
  • Operating voltage may require an external transformer
    • .
Available Options
  • Conveyors can be produced 4500 mm (177.17 in.), 7500 mm (295.28 in.) in length upon request
  • Hydro-Pneumatic saw blade feeding device. (AH 042)
  • Cooling system for the electric cabinet
  • Label printer. (AK 003)
  • Dust and chips extraction system.
Conveyors
  • TK 060-60: 3000 mm (118.11 in.) Standard
  • TK 060-70: 4500 mm (177.17 in.) Optional
  • TK 060-80: 6000 mm (236.22 in.) Optional
  • Digital Measuring and Stop System:
  • MS-311: 6000 mm (236.22 in.) Standard (4500-7500 mm (177.17-295.28 in. Optional)
Digital Measuring and Stop System
  • MS-311: 6000 mm (236.22 in.) Standard (4500-7500 mm (177.17-295.28 in. Optional)

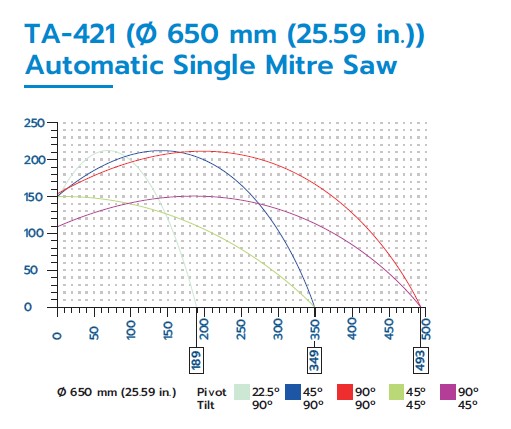

Specs & Sizing

Power Supply: 400 V, 3~50-60 Hz
Total Power Output: 12 kW (16.09 Hp), 25 A
Saw Diameter: Ø 650 mm (Ø 25.59 in.)
Saw Blade Speed: 2800 rpm (50 Hz)
Air Pressure: 6-8 bar (87.02-116.03 psi)
Air Consumption:60 l/min. (2.12 cfm)
Pivoting Range Inwards: -22.5° to +22.5° with Accuracy Up to 0.1°
Tilting Range Inwards: 90°-45°
Air consumption: 60 l/min. (2.12 cfm)
Machine height: 2,270 mm (89 in.)
Machine length: 12,814 mm (504 in.)
Machine width: 1,905 mm (75 in.)
Machine weight: 1,040 kg. (4,497 lbs.)
