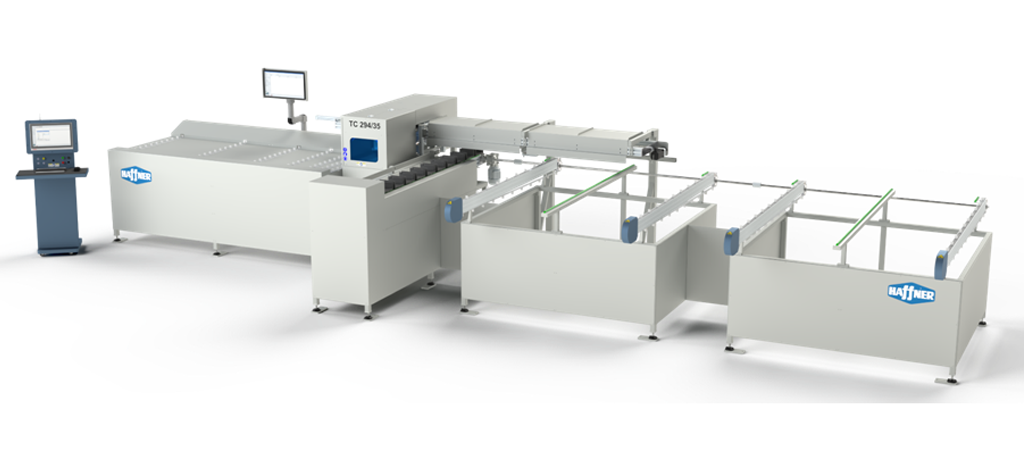

TC-294/35 Automatic Glazing Bead Saw
TC-294/35
Glazing beads are smaller profiles that are difficult to handle and manage in volume. This latest innovation, the TC-294/35 is a CNC Profile Processing machine that solves this problem, reducing handling and increases productivity. Available for both aluminum or PVC extrusions, this machine will receive the data of what to cut via a CSV file and seamlessly produce the cut extrusions either straight at 90 degrees or 45 degree miters at both ends.
Overview
- Universal clamping system suitable for all glazing bead profiles with the same fixing type.
- User-friendly and easy-to-control interface system.
- Servo motor-driven adjustable cutting system for precise cutting operations
- Capability to perform 90° cutting.
- Magazine system suitable for loading 10 paired sets of glazing bead profiles at once.
- Output conveyor belt system and information display for 10 paired sets of glazing bead profiles
Specs & Sizing
Power supply: 400 V, 3~ 50–60 Hz
Air pressure: 6-8 bar
Milling Saw Diameter: Ø150 mm.
Saw blade diameter: Ø300 mm
Max. Profile Cross-Section: 45 x 45 mm
Max. Profile Feeding Length: 2300 mm
Max. Profile Loading Length: 6 m
Cutting Material: PVC
Machine weight: 1960kg

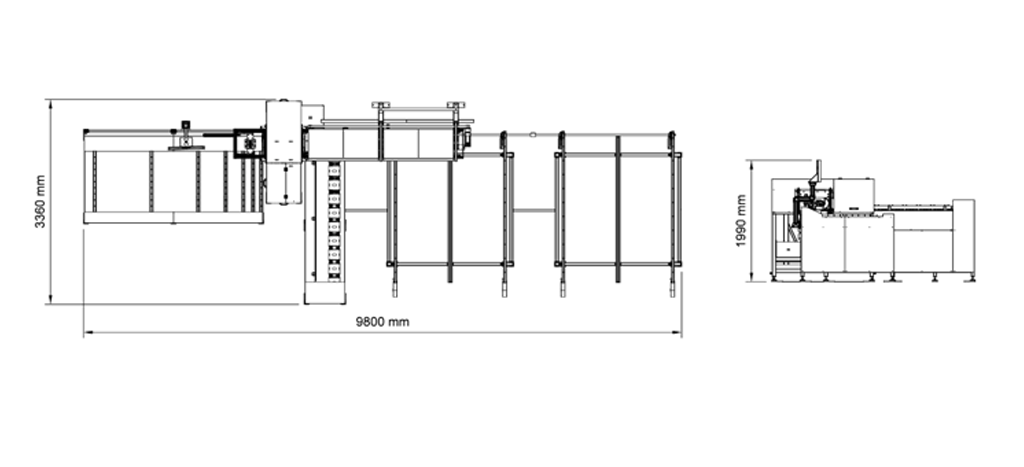

Machine length: 9800 mm
Machine width: 3360 mm
Machine height: 1990 mm
